Product Details:
Payment & Shipping Terms:
|
| Model Number: | Aluminium Window Profile | Material: | 6063,6061,6060,6005,6005A,etc |
|---|---|---|---|
| Surface Treatment: | Mill Finish,Anodized,Powder Coated,ele | Lifetime: | More Than 15 Years |
| Company Honer: | China Famous Trademark | Shape: | Square, Round, Oval, Triangle, U-prof |
| Thickness: | 0.8mm~2.0mm,Customized Available | Application: | Window/Door/Glass/Mirror Frame |
| Highlight: | folding aluminum ladders,laundry drying rack |
||

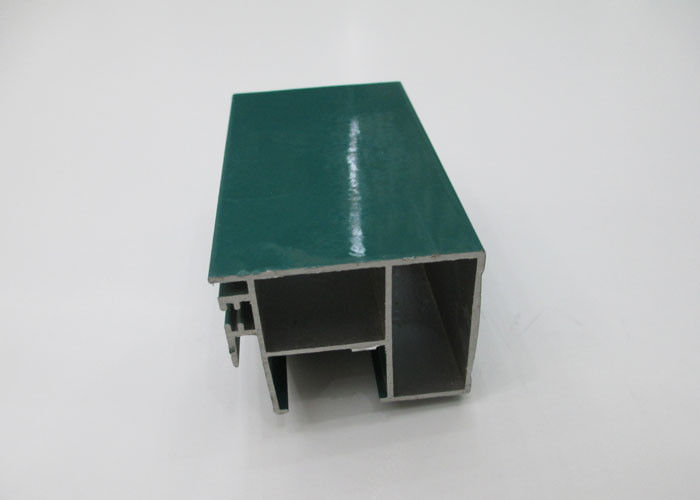

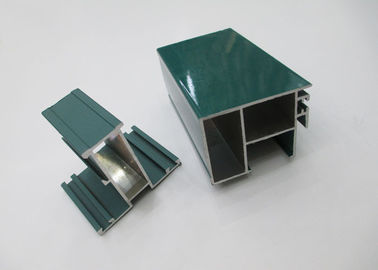

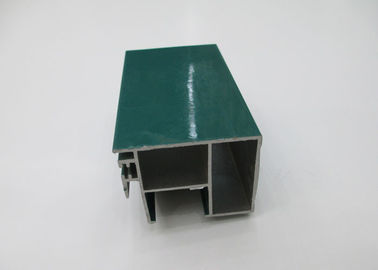

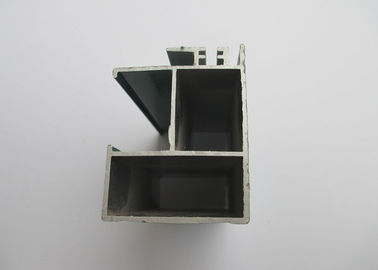

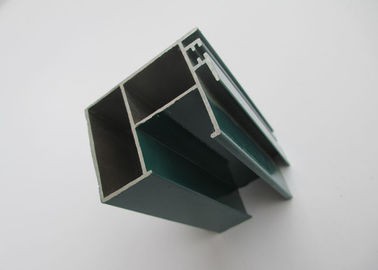

Sun Room Green Window Aluminium Profile Anodised / Electrophoresis Surface Treatment
Our advantage:
1) First-class service from moulding,melting,extruding,surface treatment,packing to shipping.
2) Fabrication or mechanical process is supplied , if neccessory.
3) Various types of aluminum profiles related to architecture, industry,furniture etc.
4) OEM or ODM supply.
SPECIFICATION:
CHEMICAL COMPOSITION:
Aluminium Alloy Chemical Composition | ||||
Alloy | 6063 (%) | 6063A (%) | 6061 (%) | 6082 (%) |
Si | 0.2~0.60 | 0.3~0.60 | 0.4~0.80 | 0.7~1.30 |
Fe | 0.35 | 0.15~0.35 | 0.70 | 0.50 |
Cu | 0.10 | 0.10 | 0.15~0.40 | 0.10 |
Mn | 0.10 | 0.15 | 0.15 | 0.40~1.0 |
Mg | 0.45~0.90 | 0.60~0.90 | 0.80~1.20 | 0.6~1.20 |
Cr | 0.10 | 0.05 | 0.04~0.35 | 0.25 |
Zn | 0.10 | 0.15 | 0.25 | 0.20 |
Ti | 0.10 | 0.10 | 0.15 | 0.10 |
Other (each) | 0.05 | 0.05 | 0.05 | 0.50 |
Other (total) | 0.15 | 0.15 | 0.15 | 0.15 |
Al | Remainder | Remainder | Remainder | Remainder |
ANODIZED GRADE:
Class | Min Average Film Thickness | Min Part Film Thickness |
AA10 | 10 | 8 |
AA15 | 15 | 12 |
AA20 | 20 | 16 |
AA25 | 25 | 20 |
PRODUCT FEATURE:
Material | A6063 T5 |
Characteristics of mechanics | 1, Tensile strength: ≥ 205 N/mm2 |
2, Yield strength: ≥ 110 Mpa | |
3, Hardness(HW): ≥ 8 | |
Appearance | 1, No obvious Crack, Scratch , Peeling, Corrosion and air bubble |
2, Hang mark is accepted at two end of the profiles, but should less than 10mm | |
Application | 1, Architecture: Windows and Doors, Curtain Walls, Shutter, Louver, Barrier, Fence, Ceiling, Handrail, balustrades, showcase, Partition |
2, Industrial: tube, pipe, LED strip, heat-sink, motor housing, fins, tent, solar, Vehicle beam, TV Frame | |
3, Furniture: Chair, Wardrobe, Cabinet, Ladder, Closet, Tile Trim | |
Products Feature | 1, Environmentally Friendly, Elegant appearance |
2, Corrosion-Resistant, Abrasion Resistant, High Weather Resistant | |
3, Air-Proof, Water-Proof, Anti-Aging, Durable, Shining |
FACTORY:
PACKAGE:
Inside: | EP shrink film to protect each pc |
Outside: | A. Waterproof craft paper |
B. Carton | |
C. Wooden pallet | |
D. As customer’s request |
FAQ:
1. Q: what’s your MOQ ? |
R: 3 metric ton for each model |
2. Q: What’s your payment term? |
R: 30%deposit,70%against the B/L copy or L/C at sight |
3. Q: Can you provide samples? |
R: Yes, we can send you samples according to you needs. |
4. Q: Can you do OEM, how about the mould cost? |
R: OEM is welcomed. The mould cost varies from USD200 to USD500 per set, we don’t charge any fee if your order qty is more than 5 tons (10 tons for curtain wall and industry profiles) |
5. Q: Do the price of all the colors are the same with the same surface treatment? |
R: Not yet, for powder coating ,the bright-colored will cost higher than white or gray; |
For Anodizing, colorful will higher than silver, black higher than colorful. |
