Oil Tanker Aluminum Plate Thickness 0.5mm - 500mm Width 20mm - 2650mm

Large Image : Oil Tanker Aluminum Plate Thickness 0.5mm - 500mm Width 20mm - 2650mm

Product Details:

Place of Origin:	China
Brand Name:	KALU
Certification:	ISO9001
Model Number:	KALU-CZ-Aluminum-Plate-806

Payment & Shipping Terms:

Minimum Order Quantity:	5 tons per Specification
Price:	usd 25000-40000 per ton
Packaging Details:	Stretch film + non-woven fabric + wooden pallet
Delivery Time:	5-8 work days
Payment Terms:	30% TT advance payment, balance paid before shipment
Supply Ability:	2000 tons per month

Contact Now

Detailed Product Description

Grade:	5083, 5182, 5454	Temper:	O, H12, H14, H22, H111, H112, H32, Etc.
Thickness:	0.5-500mm	Width:	20-2650mm
Length:	500- 16000mm	Application 1:	Oil Tanker
Application 2:	Fuel Tanker	Application 3:	LNG Storage Tank
Highlight:	2650mm Aluminum Plate , 0.5mm Aluminum Plate , 500mm Aluminum Plate

Product Detail

ZHANGJIAGANG KALUSEAL MECH CO.,LTD is a professional manufacturer and supplier of Oil Tanker Aluminum plate with high quality and reasonable price.

With excellent corrosion resistance and welding performance, 5xxx series is wide applied in marine, automotive, railway transportation, oil and chemical industries, etc. SMC is able to offer 5083, 5182 and 5454 Aluminum plates, etc. which are applicable for oil tank bodies.

With the same area as other series, the weight of this aluminum plate is lighter. As a result, it is used in aviation, such as in the fuel tanks in air plane. The main ingredient of this series aluminum plate is magnesium element and the content is between 3% and 5%. It is also called aluminum magnesium alloy. This aluminum plate can be used in continuously casting and rolling. As a result, it can be used in oxidation and deep processing. All these superior properties make 5xxx the most suitable alloy for oil tanker.

If you want to know more about aluminum plate for oil tanker or other aluminum products, please feel free to contact us, we will reply you within 24 hours.

Apart from aluminum plate for oil tanker, we are also manufacturing marine grade aluminum sheet for ship, aluminum checkered/tread plate for anti-skidding and prepainted aluminum coil.

Specification

Grade	5083, 5182, 5454
Temper	O, H12, H14, H22, H111, H112, H32, etc.
Thickness	0.5-500mm
Width	20-2650mm
Length	500- 16000mm

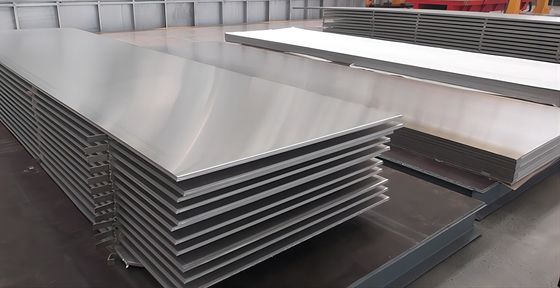

Oil Tanker Aluminum Plate Thickness 0.5mm - 500mm Width 20mm - 2650mm 0

Application

Application 1	Oil tanker
Application 2	Fuel tanker
Application 3	LNG storage tank

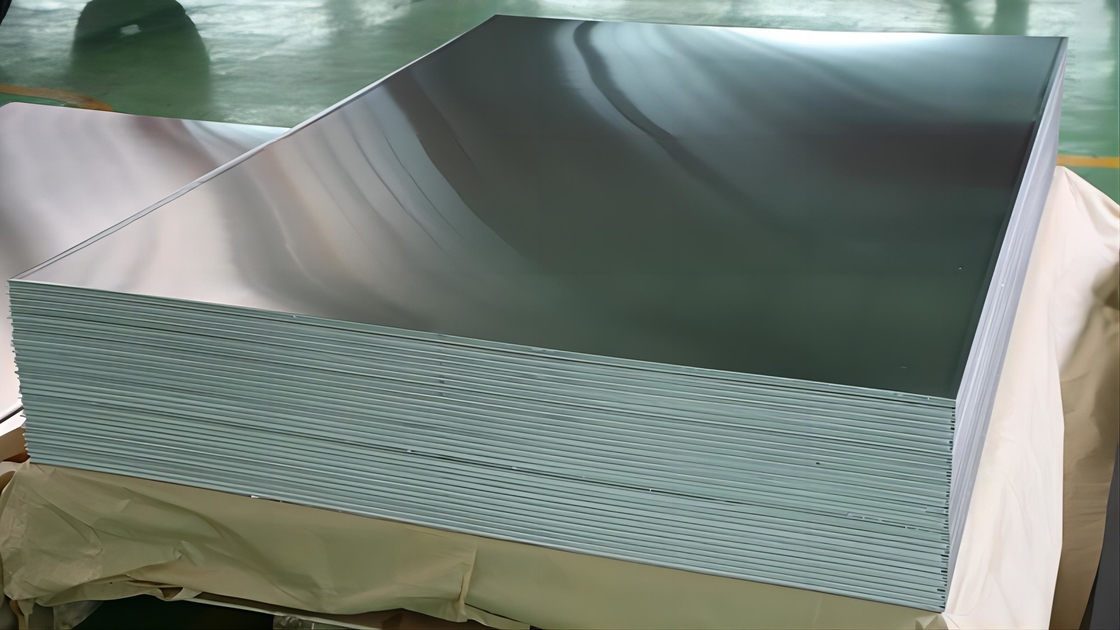

Oil Tanker Aluminum Plate Thickness 0.5mm - 500mm Width 20mm - 2650mm 1

Technical Information

Technical Information of Oil Tanker Aluminum Plate

Chemical composition (wt%)

Alloy series		Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti
5083	Min.				0.40	4.00	0.05
5083	Max.	0.40	0.40	0.10	1.00	4.90	0.25	0.25	0.15
5182	Min				0.20	4.00
5182	Max.	0.20	0.35	0.15	0.50	5.00	0.10	0.25	0.10
5454	Min				0.50	2.40	0.05
5454	Max	0.25	0.40	0.10	1.00	3.00	0.20	0.25	0.20

Specification(mm)

Alloy series		Thickness	Width	Length
5083	Min.	4	1000	2000
5083	Max	8	2400	12600
5182	Min.	4	1000	2000
5182	Max.	8	2400	12600
5454	Min	4	1000	2000
5454	Max.	8	2400	12600

Mechanical properties

Alloyseries	Temper	Yield strength Rp(Mpa)	Tensile strength Rm(Mpa)	EongationA(%)
5083	O/H111 H112	≥125 ≥125	270-350 ≥275	≥15 ≥12
5182	O/H111	≥110	255-315	≥16
5454	O/H111 H112 H32	≥85 ≥125 ≥180	215-275 ≥220 250-305	≥117 ≥8 ≥8

Oil Tanker Aluminum Plate Thickness 0.5mm - 500mm Width 20mm - 2650mm 4

Packaging

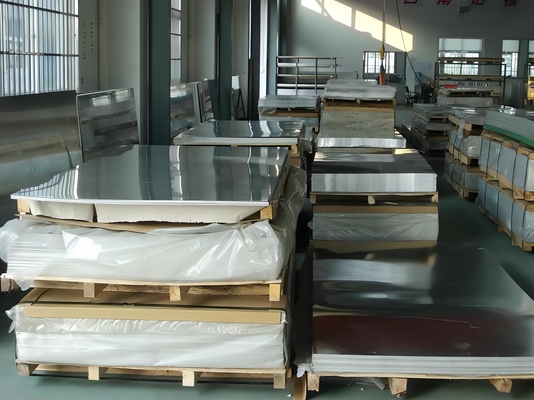

Packaging of Oil Tanker Aluminum plate

KALU Products are packed and labeled according to the regulations and customer's requests. Great care is taken to avoid any damage which might be caused during storage or transportation. In addition, clear labels are tagged on the outside of the packages for easy identification of the product I. D. and quality information.

1)	KALU Standard
2)	Customization

Oil Tanker Aluminum Plate Thickness 0.5mm - 500mm Width 20mm - 2650mm 5

Features of Oil Tanker Aluminum Plate:

1)	Large specification
2)	Medium strength
3)	Quality surface
4)	High formability
5)	Excellent corrosion resistance
6)	Excellent welding performance
7)	Recyclable
