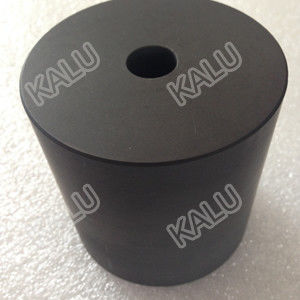

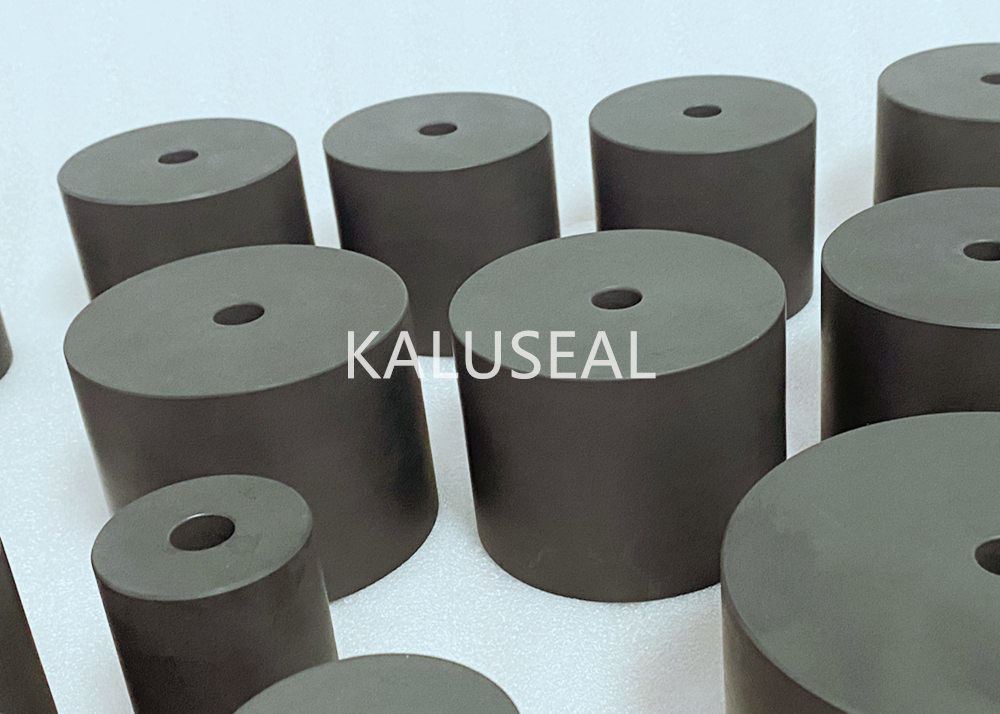

Customized Bearing Odm Carbon Graphite Bushings Mechanical Seal For Submersible Pump
Product Details
| Model: | Carbon Bush | Mechanical Seal: | Spare Parts |
|---|---|---|---|
| Type: | Sleeve | Material Of Seal Faces: | Resin Bonded Carbon |
| Keywords: | Mechanical Seal | HS Code: | 8484200090 |
| Place Of Origin: | Zhangjiagang,China(mainland) | Usage: | Used For Pump |
| Customized: | Yes | ||
| Highlight |
submersible pump carbon graphite bushings,odm mechanical seal for submersible pump,odm carbon graphite bushings |
||
Product Description
Carbon graphite is used as a soft material in a wide range ofapplications, from wet running to dry running
Graphite sleeve has performance of high temperature resistance,wear resistance.
Advantage:
Excellent natural lubricity
Outstanding thermal shock resistance
Good thermal conductivity
Good corrosion resistance
Mechanical carbon has been developed in different grades tomeet various service conditions:
Resin bonded carbon: ab economical, pressed to size materialfor volume requirements
Resin impregnated carbon: furan resin, phenolic resin, or epoxyresin are used as filler to decrease the porosity of carbon
Metal impregnated carbon: antimony, copper, or babbitt alloysare used ad filler for applications requiring higher workingtemperatures or higher strength
KALUSEAL Carbon Material Report:
| Type | Hardness | Rupture Strenggth | Compressive Strength | Density | Porosity | Temperature |
| HS | Mpa | Mpa | g/cm3 | % | ℃ | |
| M106K | ≥70 | ≥50 | ≥180 | ≥1.75 | ≤2.5 | 200 |
| M106D | ≥75 | ≥70 | ≥220 | ≥2.2 | ≤3.0 | 350 |
We design and manufacturer mechanical seals,supplying consulting of sealing problem and repair service.
Spring pusher seals,Rubber bellow mechanical seals,PTFE bellow mechanical seal,Metal Bellow Seals,Cartridge Seals,Mixer & Agitator seals, Dry Gas Seals; Spare parts with material silicon carbide, Tungsten carbide, Carbon ,Ceramic,rubber,O-rings and stainless steel parts
Fixing and Applying Directions of Mechanical Seals
1) Select Appropriate mechanical seal to match the materials according to work conditions and host machine equipment.
2) The radial acting deviation for the shaft(shaft sleeve) of the installed mechanical seal shall be 0.04mm by maximum
while the axial movement value of the rotor shall be no more than 0.1mm.
3) The seal cover (or shaft cover) of the stationary ring of the installed mechanical seals,the vertical degree of the seal
face should be 0.04mm by maximum.
4) When installing the mechanical seals,the shaft(shaft sleeve),seal chamber,seal face as well as the mechanical seal
must be cleaned in order to keep from any medium to sealing part.
5) When conveying medium of over high or low temperature,with medium which are easy catch fire,easy for explosion.
Related mechanical seal standards must be referred to take appropriate measures such as quench,rinsing,coolong and
filtrating.
6) Appropricate lubrication must be choosen when mechanical seal is installed.The installment size of the mechanical
seal must be guaranteed to the installment instruction.
7) Before the machine starts running,the hermetic compartment shall be full of medium and well lubricated.Dry friction
which may lead to the damage of the air-tightness is strict forbidden.
Delivery:
1. If the products we have in store, we will send it out ASAP after receiving payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT, UPS will be normal ways. If you require use of a courier, please inform us in advance.
Factory:
