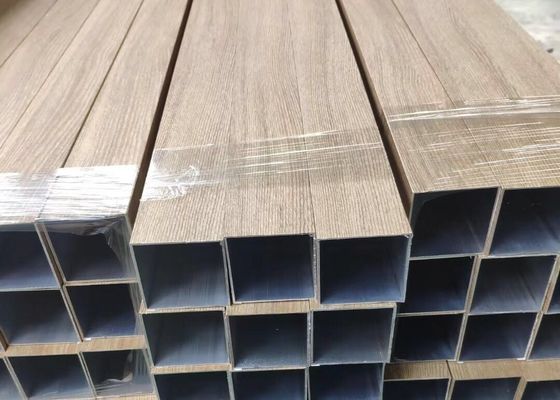

Pvc Wood Film 6063 T5 Aluminum Square Tube Stock

small.img.alt small.img.alt small.img.alt

Large Image :  Pvc Wood Film 6063 T5 Aluminum Square Tube Stock

Product Details:
Place of Origin: China
Brand Name: Xinyu
Certification: ISO9001/ISO14001/OHSAS 18001
Model Number: KL0105
Payment & Shipping Terms:
Minimum Order Quantity: 500kgs
Price: Negotiation
Packaging Details: EP paper, Shrink film, Kraft paper, as per export packing standard, custom packing is available
Delivery Time: Within 20 days after received your deposits
Payment Terms: T/T,30% advanced deposit, the balance paid off before loading, or consulting.
Supply Ability: 6500tons per month
Detailed Product Description
Materials: Al6063 T5 Product Name: Aluminum Veneer
Color: PVC Wood Vneer Certification: SGS, RoHS, UL And FDA Standard
Application: Kitchen, Cellar, Balcony, Armoire, Panel, Floor Shape: Depend On Your Design
Surface Treatment: Venner Aluminum Machining: Cutting, Drilling, Threading, Bending, Etc
High Light:

t5 6063 aluminum square tube


6063 aluminum square tube stock


t5 aluminum square tube stock

Natural Wood Veneer Aluminum Profile PVC Wood Film Aluminum Square Tube Exterior Panle Floor


Fields of application:


For highly durable in bonding of:

  • Wood based materials for in terior area

General edge banding in the furniture industry

PVC and wood based profiles with:

  • PVC foils
  • CPL, thick decor paper
  • Veneer

Yellow chromated aluminium profiles

For interior finishing of motor vehicles:

  • lamination of cloth/carpet or PVC foils to substrates made from wood based materials or plastic
  • Pvc Wood Film 6063 T5 Aluminum Square Tube Stock 0


  • Very high green strength with high tack
  • Heat resistance more then 150 °C
  • Cold resistance up to -40 °C

Application techniques:


PUR- hotmelts react with ambient air humidity. KLEIBERIT PUR-HM 702 is available in tightly closed metal containers suitable for platen melters. The package should only be open immediately before use.

The melting equipment must constructed in such a way that the adhesive is protected from ambient air humidity. It is important that the temperature can be controlled accurately.

Yellow chromated aluminium profiles must be preheated to approx. 40 °C immediately before bonding. The chrome coating must not be older then 4 weeks.

The application temperature for profile wrapping is from 140 °C to 160 °C. For edge banding the application temperature is in the range from 120 °C.

(veneer and resin paper can have higher application temperatures)

The required coat weight depends on the material: E.g. Profile wrapping:

    -PVC-Foil 40 - 60 g/m2


  • Decor papers

(Incl. CPL-Material and thick papers) 50 - 70 g/m2

  • Veneers 80 - 120 g/m2

E.g. Edge banding onto:

  • Particle board and MDF from 140 g/m2
  • g/m2

Properties of the adhesive Basis: Polyurethane

Specific gravity: approx. 1.04 g/cm3

Viscosity (on the day of production) -Brookfield HBTD 10 rpm (mPa.s):

Product Nr. 120 °C 140 °C 160 °C
702.5 60.000士 35.000 士 20.000 士
15.000 10.000 5.000
702.7 100.000 士 60.000 士 35.000 士
25.000 15.000 10.000
702.9 200.000 士 100.000 士 60.000 士
40.000 25.000 15.000


The speed, depending on the materials and the profile geometries used, is between 10-60 m/min and can be even higher. The final bond strength is reached after approx. 7 days.

Chemical cross linking of PUR hotmelts requires moisture. Therefore sufficient air humidity has to be present during processing.


Application equipment:

  • Cartridge guns for manual use
  • Tank melter with nitrogen blanket
  • Drum melting systems for 20 and 200 litre drums
