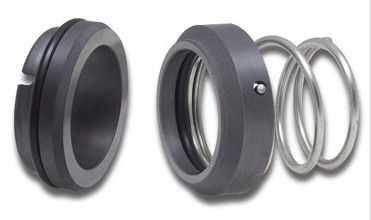

Burgmann M2N Type 10-80mm Mechanical Shaft Seal

small.img.alt small.img.alt

Large Image :  Burgmann M2N Type 10-80mm Mechanical Shaft Seal

Product Details:
Place of Origin: China
Brand Name: KALU
Model Number: KL-M2N
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: carton
Delivery Time: 10 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 pcs
Detailed Product Description
Standard Or Nonstandard: Standard Size: 10-80mm
Keywords: Burgmann M2N Pump Seal Mechanical Seal HS Code: 8484200090
Model: KL-M2N Temperature: -20--180℃
Seal Ring: Car, Sic, Ssic, Ceramic, TC Secondary Seal: NBR, EPDM, Viton
Spring And Metal Parts: 304, 316, HAST.C Place Of Origin: Zhangjiagang,China(mainland)
Balance: No
High Light:

Burgmann M2N mechanical shaft seal


80mm Mechanical Shaft Seal


10mm Mechanical Shaft Seal


Replacement of Burgmann M2N, conical spring design.

KL-M2N can replace AESSEAL T07D ,BURGMANN M2N,which is widely used for Hecker HN 400A and other kinds of pumps.


Operating range:

Temperature: -20--180℃

Speed: 15m/s.

Pressure: 10bar

Standard size: 10-80mm



1. Single seal
2. Unbalanced
3. Conical spring
4. Dependent on direction
5. Manufactured to DIN24960 standard



Seal ring: Stainless steel, Car, Sic, Ssic, TC.

Secondary seal: NBR, EPDM, Viton etc.

Spring and metal parts: 304, 316, HAST.C

Burgmann M2N Type 10-80mm Mechanical Shaft Seal 0



1. If the products we have in store, we will send it out ASAP after receiving payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT, UPS will be normal ways. If you require use of a courier, please inform us in advance.


Factory tour:


Burgmann M2N Type 10-80mm Mechanical Shaft Seal 1


We also supply repair service:


Burgmann M2N Type 10-80mm Mechanical Shaft Seal 2




Burgmann M2N Type 10-80mm Mechanical Shaft Seal 3


Fixing and Applying Directions of Mechanical Seals

1) Select Appropriate mechanical seal to match the materials according to work conditions and host machine equipment.
2) The radial acting deviation for the shaft(shaft sleeve) of the installed mechanical seal shall be 0.04mm by maximum
while the axial movement value of the rotor shall be no more than 0.1mm.
3) The seal cover (or shaft cover) of the stationary ring of the installed mechanical seals,the vertical degree of the seal
face should be 0.04mm by maximum.
4) When installing the mechanical seals,the shaft(shaft sleeve),seal chamber,seal face as well as the mechanical seal
must be cleaned in order to keep from any medium to sealing part.
5) When conveying medium of over high or low temperature,with medium which are easy catch fire,easy for explosion.
Related mechanical seal standards must be referred to take appropriate measures such as quench,rinsing,coolong and
6) Appropricate lubrication must be choosen when mechanical seal is installed.The installment size of the mechanical
seal must be guaranteed to the installment instruction.
7) Before the machine starts running,the hermetic compartment shall be full of medium and well lubricated.Dry friction
which may lead to the damage of the air-tightness is strict forbidden.


Burgmann M2N Type 10-80mm Mechanical Shaft Seal 4

Our product includes Spring pusher seals,Rubber bellow mechanical seals,PTFE bellow mechanical seal,Metal Bellow Seals,Cartridge Seals,Mixer and Agitator seals,Dry Gas Seals.Besides, we can also supply spare parts with material silicon carbide, Tungsten carbide, Carbon ,Ceramic,rubber and stainless steel.

Our products are widely used in petroleum, chemistry, refinery, paper making, food,pharmaceutical, textile,power,marine...
