Product Details:
Payment & Shipping Terms:
|
| Type: | KL-MTEX | Size: | 25-80mm |
|---|---|---|---|

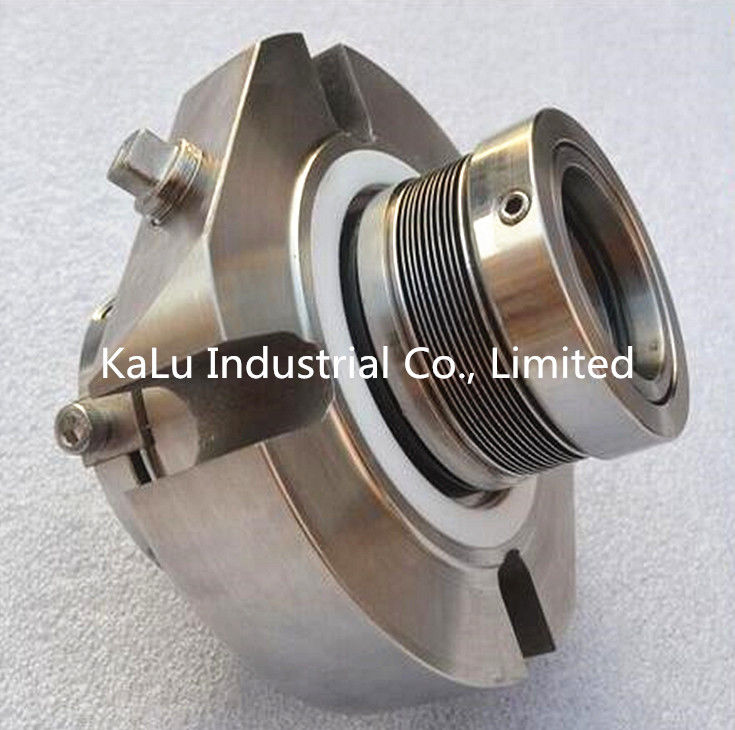

| Material Of Seal Faces: | Car, Sic, Ssic, TC | Keywords: | Burgmann Mtex Cartridge Mechanical Seal |
| Temperature: | -40℃～250℃ | Pressure: | 2.5Mpa |
| HS Code: | 8484200090 | Mechanical Seal: | Double Cartridge Seal |
| Place Of Origin: | Zhangjiagang,China(mainland) | ||
| High Light: | mechanical seal replacement,mechanical pump seals |
||
Features:
Temperature:-40℃～220℃
Speed:≤10m/s
Pressure:≤2.5Mpa
Shaft diameter: 25-80 mm
Rotary face:Carbon/Sic/TC
Stat Ring:Sic/TC
Recommended applications:
Pumps
Process industry
Chemical industry
Hot media
Cold media
Highly viscous media
Special rotating equipment
Product Drawing:
| Size/Metric | D1 | D2 | D3 | L1 | L2 | L3 | L4 | L5 | L6 | L7 | D5 | N | M | G | |
| min | max | ||||||||||||||
| 25 | 25 | 45.0 | 47.0 | 51.0 | 79.5 | 26.1 | 53.4 | 25.4 | 87.0 | 33.6 | 53.4 | 105.0 | 62.0 | 13.2 | 1/4 |
| 30 | 30 | 49.4 | 52.0 | 56.0 | 78.4 | 25.0 | 53.4 | 25.4 | 86.5 | 33.1 | 53.4 | 105.0 | 67.0 | 13.2 | 1/4 |
| 32 | 32 | 52.3 | 54.5 | 57.0 | 78.4 | 25.0 | 53.4 | 25.4 | 86.5 | 33.1 | 53.4 | 108.0 | 70.0 | 13.2 | 1/4 |
| 33 | 33 | 52.3 | 54.5 | 57.0 | 78.4 | 25.0 | 53.4 | 25.4 | 86.5 | 33.1 | 53.4 | 108.0 | 70.0 | 13.2 | 1/4 |
| 35 | 35 | 54.8 | 58.0 | 61.5 | 78.4 | 25.0 | 53.4 | 25.4 | 86.5 | 33.1 | 53.4 | 113.0 | 72.0 | 13.2 | 1/4 |
| 38 | 38 | 57.5 | 60.0 | 66.0 | 78.4 | 25.0 | 53.4 | 25.4 | 86.5 | 33.1 | 53.4 | 123.0 | 75.0 | 14.0 | 1/4 |
| 40 | 40 | 58.8 | 62.0 | 68.0 | 78.2 | 24.8 | 53.4 | 25.4 | 86.3 | 32.9 | 53.4 | 123.0 | 77.0 | 14.2 | 3/8 |
| 43 | 43 | 61.9 | 64.5 | 70.5 | 78.4 | 25.0 | 53.4 | 25.4 | 86.5 | 33.1 | 53.4 | 133.0 | 80.0 | 14.2 | 3/8 |
| 45 | 45 | 65.0 | 68.5 | 73.0 | 78.4 | 25.0 | 53.4 | 25.4 | 86.5 | 33.1 | 53.4 | 138.0 | 82.0 | 14.2 | 3/8 |
| 48 | 48 | 68.4 | 71.0 | 75.0 | 78.7 | 25.3 | 53.4 | 25.4 | 86.8 | 33.4 | 53.4 | 138.0 | 85.0 | 14.2 | 3/8 |
| 50 | 50 | 70.0 | 73.0 | 78.0 | 79.1 | 25.7 | 53.4 | 25.4 | 87.2 | 33.8 | 53.4 | 148.0 | 87.0 | 14.2 | 3/8 |
| 53 | 53 | 71.9 | 75.0 | 87.0 | 77.8 | 24.4 | 53.4 | 25.4 | 87.4 | 34.0 | 53.4 | 148.0 | 97.0 | 18.0 | 3/8 |
| 55 | 55 | 74.6 | 77.0 | 83.0 | 78.9 | 25.5 | 53.4 | 25.4 | 87.0 | 33.6 | 53.4 | 148.0 | 92.0 | 18.0 | 3/8 |
| 60 | 60 | 83.9 | 87.0 | 91.0 | 80.1 | 26.7 | 53.4 | 25.4 | 88.2 | 34.8 | 53.4 | 157.0 | 102.0 | 18.0 | 3/8 |
| 65 | 65 | 87.5 | 90.0 | 98.5 | 80.0 | 26.6 | 53.4 | 25.4 | 88.1 | 34.7 | 53.4 | 163.0 | 109.3 | 18.0 | 3/8 |
| 70 | 70 | 93.0 | 98.0 | 108.0 | 81.5 | 28.1 | 53.4 | 25.4 | 89.6 | 36.2 | 53.4 | 178.0 | 118.3 | 18.0 | 3/8 |
| 75 | 75 | 96.8 | 101.6 | 118.0 | 94.4 | 30.5 | 63.9 | 28.0 | 107.4 | 43.5 | 63.9 | 190.0 | 129.0 | 18.0 | 3/8 |
| 80 | 80 | 104.7 | 108.0 | 124.0 | 94.4 | 30.4 | 64.0 | 28.0 | 106.8 | 42.9 | 63.9 | 195.0 | 135.0 | 18.0 | 3/8 |
Workplant:
Fixing and Applying Directions of Mechanical Seals
1) Select Appropriate mechanical seal to match the materials according to work conditions and host machine equipment.
2) The radial acting deviation for the shaft(shaft sleeve) of the installed mechanical seal shall be 0.04mm by maximum
while the axial movement value of the rotor shall be no more than 0.1mm.
3) The seal cover (or shaft cover) of the stationary ring of the installed mechanical seals,the vertical degree of the seal
face should be 0.04mm by maximum.
4) When installing the mechanical seals,the shaft(shaft sleeve),seal chamber,seal face as well as the mechanical seal
must be cleaned in order to keep from any medium to sealing part.
5) When conveying medium of over high or low temperature,with medium which are easy catch fire,easy for explosion.
Related mechanical seal standards must be referred to take appropriate measures such as quench,rinsing,coolong and
filtrating.
6) Appropricate lubrication must be choosen when mechanical seal is installed.The installment size of the mechanical
seal must be guaranteed to the installment instruction.
7) Before the machine starts running,the hermetic compartment shall be full of medium and well lubricated.Dry friction
which may lead to the damage of the air-tightness is strict forbidden.
Delivery:
1. If the products we have in store, we will send it out ASAP after receiving payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT, UPS will be normal ways. If you require use of a courier, please inform us in advance.
What product we supply?
We design and manufacturer mechanical seals,supplying consulting of sealing problem and repair service.
Spring pusher seals,Rubber bellow mechanical seals,PTFE bellow mechanical seal,Metal Bellow Seals,Cartridge Seals,Mixer & Agitator seals, Dry Gas Seals; Spare parts with material silicon carbide, Tungsten carbide, Carbon ,Ceramic,rubber,O-rings and stainless steel parts...
