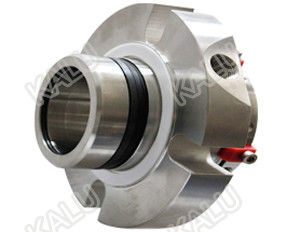

KL-CSN Mechanical Seal Replace Burgmann Cartex SN Single Cartridge Seal

KL-CSN Mechanical Seal Replace Burgmann Cartex SN Single Cartridge Seal
KL-CSN Mechanical Seal Replace Burgmann Cartex SN Single Cartridge Seal KL-CSN Mechanical Seal Replace Burgmann Cartex SN Single Cartridge Seal KL-CSN Mechanical Seal Replace Burgmann Cartex SN Single Cartridge Seal

Large Image :  KL-CSN Mechanical Seal Replace Burgmann Cartex SN Single Cartridge Seal

Product Details:
Place of Origin: China
Brand Name: KALU
Model Number: KL-CSN
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton
Delivery Time: Negotiable
Payment Terms: Western Union, T/T, MoneyGram
Supply Ability: Negotiable
Detailed Product Description
Mechanical Seal: Cartridge Seal Size: 25-100mm
Material Of Seal Faces: Car, Sic, Ssic, TC Keywords: Burgmann CARTEX SN Cartridge Mechanical Seal
Temperature: -20℃~130℃ Pressure: 2.0Mpa
HS Code: 8484200090 Model: KL-CSN
Place Of Origin: Zhangjiagang,China(mainland) Type: Single Cartridge Seal
High Light:

mechanical seal replacement

,

mechanical pump seals

KL-CSN Mechanical Seal Replace Burgmann Cartex SN Single Cartridge Seal



Features:



Single seal
Cartridge
Balanced
Independent of direction of rotation

Operating range:

Temperature: -20℃~130℃

Speed:≤15m/s

Pressure: ≤2.0Mpa

Shaft diameter: 25-100 mm (1.000"-4.000") Other sizes on request

Material:

Rotary face:Carbon/Sic/TC

Stat Ring:Sic/TC



Product Drawing:

KL-CSN Mechanical Seal Replace Burgmann Cartex SN Single Cartridge Seal 0

Size/Metric D6 D4 D5 L L2 L1 W M G
min max
25 43.0 44.0 51.5 105 67 24.6 25.4 62.0 13.2 1/4
28 46.0 47.0 52.0 105 67 24.6 25.4 62.0 13.2 1/4
30 48.0 49.0 56.0 105 67 24.6 25.4 65.0 13.2 1/4
32 49.8 51.0 57.0 108 67 24.6 25.4 67.0 13.2 1/4
33 49.8 51.0 57.0 108 67 24.6 25.4 67.0 13.2 1/4
35 53.0 54.0 61.5 113 67 24.6 25.4 70.0 13.2 1/4
38 56.0 57.0 66.0 123 67 24.6 25.4 75.0 13.2 1/4
40 58.0 59.0 68.0 123 67 24.6 25.4 75.0 14.2 3/8
42 60.5 61.5 69.5 133 67 24.6 25.4 80.0 14.2 3/8
43 60.5 61.5 70.5 133 67 24.6 25.4 80.0 14.2 3/8
45 62.5 64.0 73.0 138 67 24.6 25.4 81.0 14.2 3/8
48 65.6 67.0 75.0 138 67 24.6 25.4 84.0 14.2 3/8
50 68.0 69.0 78.0 148 67 24.6 25.4 87.0 14.2 3/8
53 72.0 73.0 87.0 148 67 24.6 25.4 97.0 18.0 3/8
55 73.0 74.0 83.0 148 67 24.6 25.4 90.0 18.0 3/8
60 78.0 79.0 91.0 157 67 24.6 25.4 102.0 18.0 3/8
65 84.8 85.7 98.5 163 67 24.6 25.4 109.0 18.0 3/8
70 93.0 95.0 108.0 178 67 24.6 25.4 118.0 18.0 3/8
75 100.0 101.6 118.0 190 84 26.6 28.0 129.0 18.0 3/8
80 106.4 108.0 124.0 195 84 26.6 28.0 135.0 18.0 3/8
85 109.5 111.1 128.0 198 84 26.6 28.0 139.0 22.0 3/8
90 115.9 117.5 135.0 205 84 26.6 28.0 145.0 22.0 3/8
95 119.1 120.7 138.0 208 84 26.6 28.0 148.0 22.0 3/8
100 125.4 127.0 144.0 218 84 26.6 28.0 154.0 22.0 3/8


KL-CSN Mechanical Seal Replace Burgmann Cartex SN Single Cartridge Seal 1

What product we supply?



We design and manufacturer mechanical seals,supplying consulting of sealing problem and repair service.

Spring pusher seals,Rubber bellow mechanical seals,PTFE bellow mechanical seal,Metal Bellow Seals,Cartridge Seals,Mixer & Agitator seals, Dry Gas Seals; Spare parts with material silicon carbide, Tungsten carbide, Carbon ,Ceramic,rubber,O-rings and stainless steel parts



Fixing and Applying Directions of Mechanical Seals


1) Select Appropriate mechanical seal to match the materials according to work conditions and host machine equipment.
2) The radial acting deviation for the shaft(shaft sleeve) of the installed mechanical seal shall be 0.04mm by maximum
while the axial movement value of the rotor shall be no more than 0.1mm.
3) The seal cover (or shaft cover) of the stationary ring of the installed mechanical seals,the vertical degree of the seal
face should be 0.04mm by maximum.
4) When installing the mechanical seals,the shaft(shaft sleeve),seal chamber,seal face as well as the mechanical seal
must be cleaned in order to keep from any medium to sealing part.
5) When conveying medium of over high or low temperature,with medium which are easy catch fire,easy for explosion.
Related mechanical seal standards must be referred to take appropriate measures such as quench,rinsing,coolong and
filtrating.
6) Appropricate lubrication must be choosen when mechanical seal is installed.The installment size of the mechanical
seal must be guaranteed to the installment instruction.
7) Before the machine starts running,the hermetic compartment shall be full of medium and well lubricated.Dry friction
which may lead to the damage of the air-tightness is strict forbidden.





Delivery:


1. If the products we have in store, we will send it out ASAP after receiving payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT, UPS will be normal ways. If you require use of a courier, please inform us in advance.
