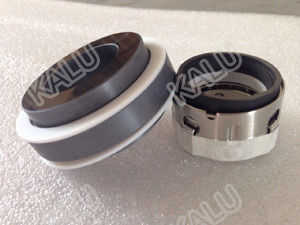

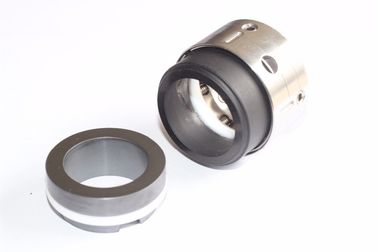

KL-9T PTFE Seal John Crane 9/9T/9B/9BT Mechanical Seal Replacement For Chemical Pump

KL-9T PTFE Seal John Crane 9/9T/9B/9BT Mechanical Seal Replacement For Chemical Pump
KL-9T PTFE Seal John Crane 9/9T/9B/9BT Mechanical Seal Replacement For Chemical Pump KL-9T PTFE Seal John Crane 9/9T/9B/9BT Mechanical Seal Replacement For Chemical Pump

Large Image :  KL-9T PTFE Seal John Crane 9/9T/9B/9BT Mechanical Seal Replacement For Chemical Pump

Product Details:
Place of Origin: China
Brand Name: KALU
Model Number: KL-9T
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiation
Packaging Details: carton
Delivery Time: 10 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 pcs
Detailed Product Description
Standard Or Nonstandard: Standard Size: 0.5-4.0"
Keywords: John Crane 9T PTFE Shaft-mounted Multi-spring Wedge Mechanical Seal HS Code: 8484200090
Model: KL-9T Temperature: -20--180℃
Seal Ring: Car, Sic, Ssic, SUS, TC Secondary Seal: PTFE,TEFLON
Spring And Metal Parts: 304, 316, HAST.C Place Of Origin: Zhangjiagang,China(mainland)
Balance: Unbalanced Type: Multi-spring Wedge Seal
High Light:

mechanical seal replacement

,

mechanical seals for pumps

KL-9T PTFE Seal John Crane 9/9T/9B/9BT Mechanical Seal Replacement for Chemical Pump

STRUCTURE DESCRIPTION

KL-9T equal to John Crane Type 9T Multi-Spring mechanical seal.

A wedge seal for use on corrosive applications, typically for chemical or hydrocarbon processing.



Operating range:

Temperature:-20-250℃

Speed: 15m/s.

Pressure: ≤1.2Mpa

Standard size: 0.5-4.0"



Material:

Seal ring: Car, Sic, Ssic, TC.

Secondary seal: NBR, EPDM, ,PTFE etc.

Spring and metal parts: 304, 316, HAST.C

Feature:

Shaft-mounted wedge seal, with PTFE or graphite-based wedges for corrosion resistance or high-temperature application.





Fixing and Applying Directions of Mechanical Seals


1) Select Appropriate mechanical seal to match the materials according to work conditions and host machine equipment.
2) The radial acting deviation for the shaft(shaft sleeve) of the installed mechanical seal shall be 0.04mm by maximum
while the axial movement value of the rotor shall be no more than 0.1mm.
3) The seal cover (or shaft cover) of the stationary ring of the installed mechanical seals,the vertical degree of the seal
face should be 0.04mm by maximum.
4) When installing the mechanical seals,the shaft(shaft sleeve),seal chamber,seal face as well as the mechanical seal
must be cleaned in order to keep from any medium to sealing part.
5) When conveying medium of over high or low temperature,with medium which are easy catch fire,easy for explosion.
Related mechanical seal standards must be referred to take appropriate measures such as quench,rinsing,coolong and
filtrating.
6) Appropricate lubrication must be choosen when mechanical seal is installed.The installment size of the mechanical
seal must be guaranteed to the installment instruction.
7) Before the machine starts running,the hermetic compartment shall be full of medium and well lubricated.Dry friction
which may lead to the damage of the air-tightness is strict forbidden.



KL-9T PTFE Seal John Crane 9/9T/9B/9BT Mechanical Seal Replacement For Chemical Pump 0



Size/Inch d D3 D6 D7 L3 L4
0.500 12.70 23.80 13.40 25.40 23.80 7.92
0.625 15.80 26.97 16.60 31.75 23.80 10.31
0.750 19.00 30.15 19.70 34.93 23.80 10.31
0.875 22.20 32.32 22.90 38.10 23.80 10.31
1.000 25.40 36.50 26.10 41.28 25.40 11.10
1.125 28.50 39.67 29.30 44.45 25.40 11.10
1.250 31.70 42.85 32.40 47.63 25.40 11.10
1.375 34.90 49.20 35.60 50.80 34.93 11.10
1.500 38.10 49.50 38.80 53.98 28.58 11.10
1.625 41.20 57.15 42.40 60.33 29.36 12.70
1.750 44.40 58.72 45.50 63.50 34.93 12.70
1.875 47.60 63.50 48.70 66.68 34.93 12.70
2.000 50.80 66.68 51.90 69.85 34.93 12.70
2.125 53.90 71.42 55.00 76.20 42.85 14.27
2.225 57.10 72.21 58.20 79.38 34.93 14.27
2.375 60.30 76.20 61.40 82.55 42.85 14.27
2.500 63.50 79.38 64.60 85.73 34.93 14.27
2.625 66.60 82.55 67.70 85.73 42.85 15.88
2.750 69.80 85.73 70.90 88.90 42.85 15.88
2.875 73.00 88.90 74.10 95.25 42.85 15.88
3.000 76.20 92.08 77.30 98.43 42.85 15.88
3.125 79.30 95.25 80.50 101.60 42.85 19.84
3.250 82.50 98.43 83.60 104.78 42.85 19.84
3.375 85.70 101.60 86.80 107.95 42.85 19.84
3.500 88.90 104.78 90.00 111.13 42.85 19.84
3.625 92.00 107.95 93.10 114.30 42.85 19.84
3.750 95.20 111.13 96.30 117.48 42.85 19.84
3.875 98.40 114.30 99.50 120.65 42.85 19.84
4.000 101.60 117.48 102.70 123.83 42.85 19.84


Delivery:

1. If the products we have in store, we will send it out ASAP after receiving payment.
2. If the products which were customized, we will complete the production within a specified period of time, and send it out the first time.
3. Also we can send by your delivery acount if you want.
4. We have a variety of ways to send goods, usually DHL, Fedex, TNT, UPS will be normal ways. If you require use of a courier, please inform us in advance.



Factory tour:



KL-9T PTFE Seal John Crane 9/9T/9B/9BT Mechanical Seal Replacement For Chemical Pump 1



We also supply repair service:



KL-9T PTFE Seal John Crane 9/9T/9B/9BT Mechanical Seal Replacement For Chemical Pump 2



Packing:



KL-9T PTFE Seal John Crane 9/9T/9B/9BT Mechanical Seal Replacement For Chemical Pump 3





Our product includes Spring pusher seals,Rubber bellow mechanical seals,PTFE bellow mechanical seal,Metal Bellow Seals,Cartridge Seals,Mixer and Agitator seals,Dry Gas Seals.Besides, we can also supply spare parts with material silicon carbide, Tungsten carbide, Carbon ,Ceramic,rubber and stainless steel.

Our products are widely used in petroleum, chemistry, refinery, paper making, food,pharmaceutical, textile,power,marine...



Any questions,please contact us freely.We are always here for you!
